WIDE-NEO plus
CB RADIO
WIDE-NEO plus
AM/FM Citizens Band Transceiver
A 40-channel AM/FM CB transceiver with a detachable compact control panel, 48 CTCSS subtone settings, digital volume and squelch control, and built-in transmission and power protection features.
OVERVIEW
WIDE-NEO plus is a 40-channel AM/FM CB transceiver designed for flexible vehicle installation. Its front control panel can remain attached to the radio or be detached and installed separately, allowing the compact 110 × 50 × 27 mm panel to fit more easily within the vehicle interior. The radio also features a large LCD, 48 CTCSS subtone settings, a 3-minute transmit time-out function, two-step microphone sensitivity control, digital volume and squelch level display, and overvoltage/reverse-polarity protection.
WIDE-NEO plus is a 40-channel AM/FM CB transceiver designed for flexible vehicle installation. Its front control panel can remain attached to the radio or be detached and installed separately, allowing the compact 110 × 50 × 27 mm panel to fit more easily within the vehicle interior. The radio also features a large LCD, 48 CTCSS subtone settings, a 3-minute transmit time-out function, two-step microphone sensitivity control, digital volume and squelch level display, and overvoltage/reverse-polarity protection.
KEY FEATURES
OPERATION
40-channel AM/FM operation across 26.965–27.405 MHz.
DISPLAY
Large LCD display with on-screen digital volume and squelch level indication.
MICROPHONE
Condenser microphone with two-step microphone sensitivity control.
POWER & PROTECTION
Overvoltage and reverse-polarity protection helps reduce damage caused by incorrect power connection.
TECHNICAL SPECIFICATIONS
PRODUCT GALLERY

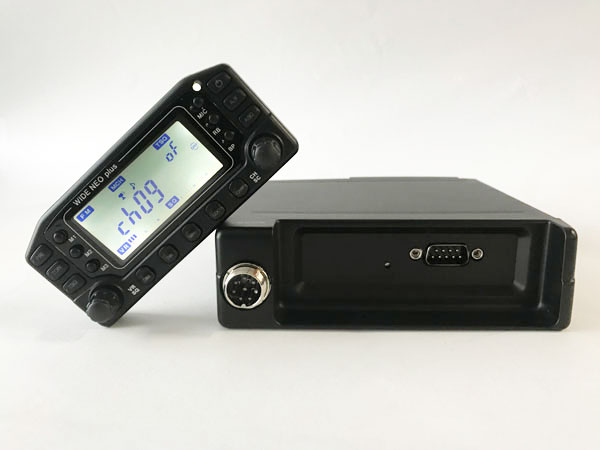

Front View

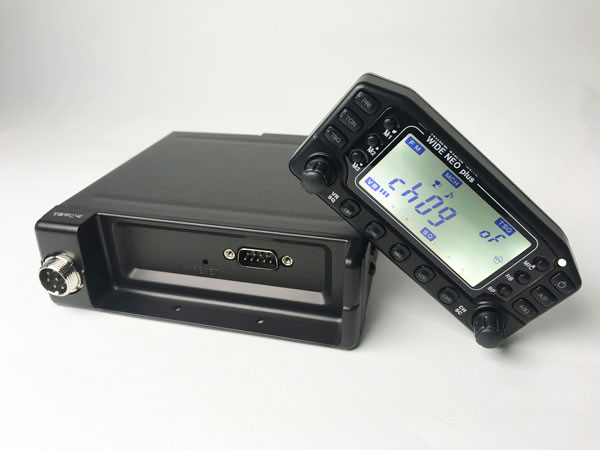

Three Quarter View
Rear Panel
Microphone
Display Controls
Vehicle Installation
DOCUMENTATION
USER MANUAL
Available on request
PRODUCT SPECIFICATION
Available on request
CERTIFICATION
Available on request
Contact PROCOM for WIDE-NEO plus Product Information.
Contact PROCOM for product availability, technical information, distribution inquiries and business cooperation.
